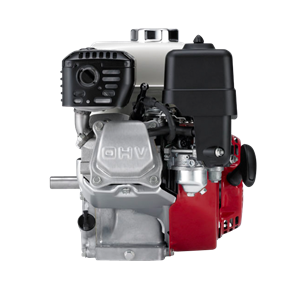

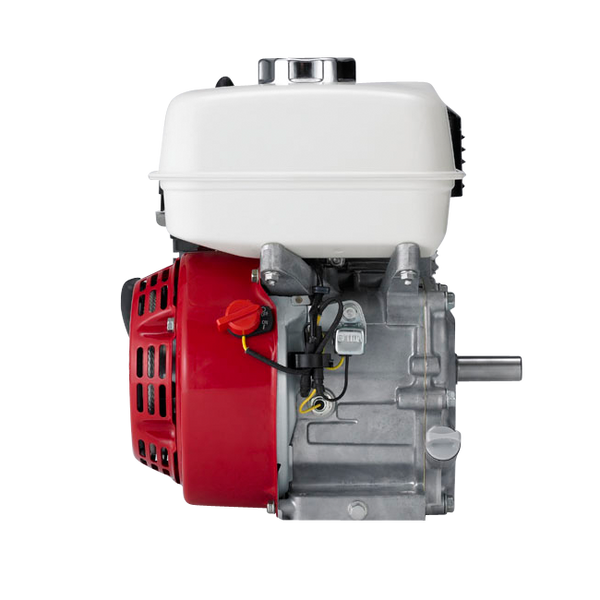

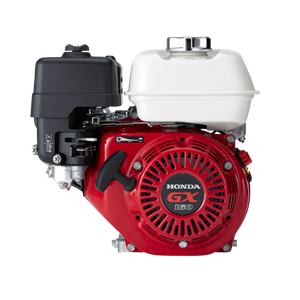

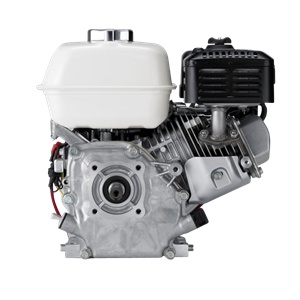

Honda GX160 163cc Engine

Regular price $629.99

Shipping calculated at checkout.

The GX160 offers improved fuel economy, lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance. The current GX160 essentially matches the dimensions of previous models, so no modifications to existing equipment designs are necessary.

Common Applications:

Dimensions LxWxH: 31.2cm x 36.2cm x 34.6cm (12.2" x 14.3" x 13.6")

  • Pressure washers
  • Commercial lawn and garden equipment
  • Tillers/cultivators
  • Generators
  • Construction/industrial equipment
  • Agricultural equipment
  • Water pumps

Features:

  • New design offers even better fuel economy than before!
  • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency
  • Precision-engineered components result in lower vibration
  • Reduced piston weight and precision balanced crankshaft result in lower engine vibration
  • Ball bearing supported crankshaft for greater stability
  • luminum push rods reduce both valve clearance and noise level
  • New enhancements to the muffler, breather valve, and case cover reduce noise level
  • Reduced mechanical noise due to light weight, noise-reducing materials
  • Forged steel crankshaft and rigid crankcase
  • Helical cut gears
  • Sophisticated air intake system
  • New carburetor chamber coating and carburetor filter help to protect against fuel impurities
  • Cast iron cylinder sleeve
  • High-quality materials, fit, and finish
  • Dual element air cleaner
  • Fuel Valve
  • Simple throttle control
  • Large fuel tanks
  • Large automotive type fuel cap
  • Dual oil drains and fill
  • Easy, convenient, heavy duty control box
  • Easily accessible spark plug
  • Heavy-duty recoil starter
  • Lower emissions, higher power output!
  • CARB and EPA certified
  • No catalyst necessary

Engine Type: Air-cooled 4-stroke OHV

Bore x Stroke: 68mm x 45mm

Displacement: 163cc

Compression Ratio: 9.0:1

Fuel Tank Capacity: 3.1L (3.3 US qts)

Starting System: Recoil Start

Oil Capacity: 0.58L (0.61 US qts)

Dry Weight: 15.1kg (33lbs)
